A 50 by 50 site gives good planning possibilities, but the space still needs to be organised carefully. Parking, entrance steps, internal rooms, setbacks and outdoor movement should all work together.

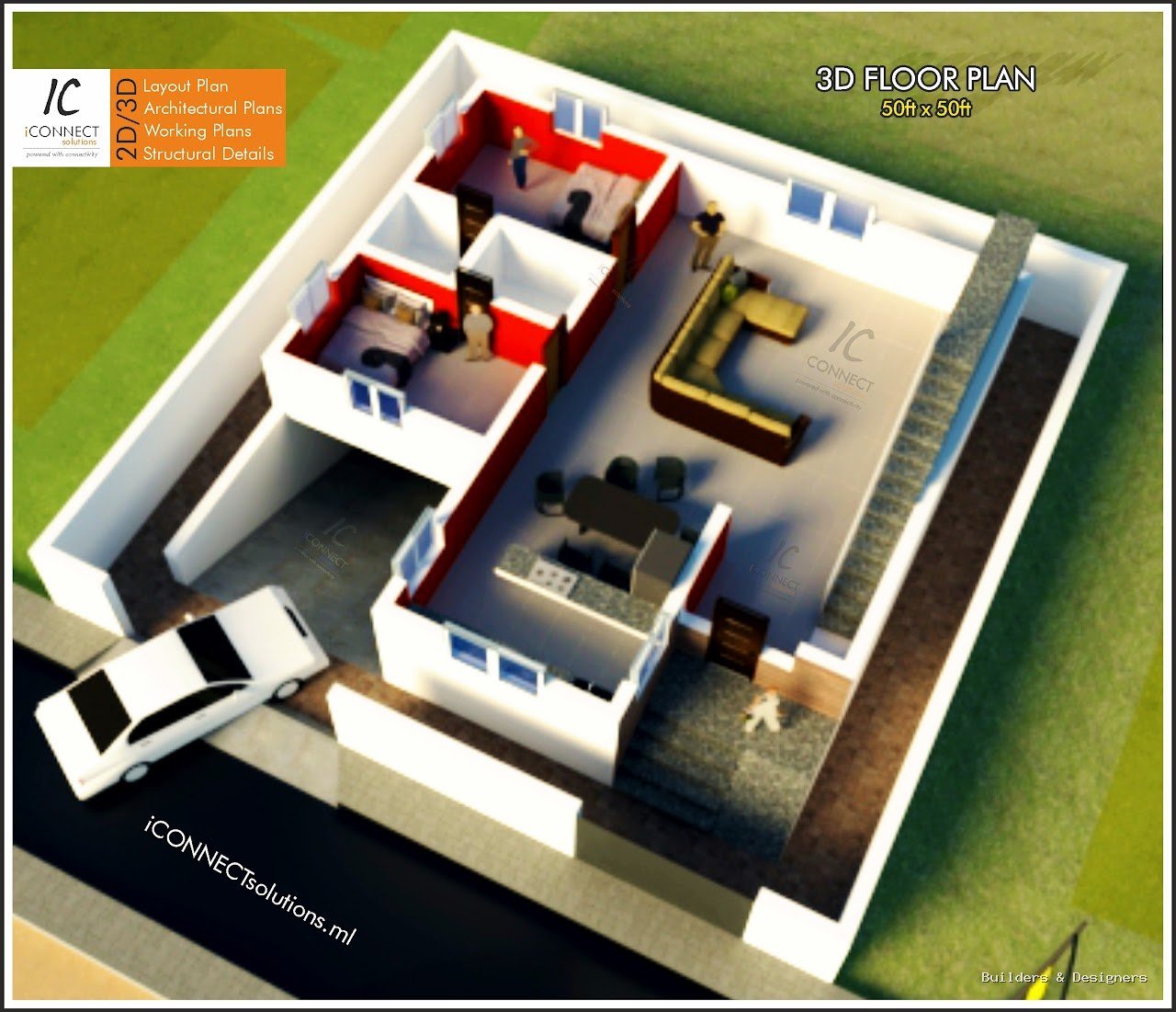

This 3D floor plan for a site on the outskirts of Bangalore shows the front parking, entry steps, compound edge, living area, kitchen/dining zone and bedrooms in one view. The cut-away model makes the relationship between inside and outside easier to understand.
Parking and entry should feel connected
The front car parking is visible near the entrance steps. This helps review how a person moves from vehicle to house and whether the entry feels natural.
- Check driveway width.
- Keep entry steps comfortable.
- Avoid blocking windows with parking.
Setbacks are useful planning space
The side and front open areas are not empty leftover strips. They support light, ventilation, access, maintenance and the overall feel of the house.
- Keep service access clear.
- Use setbacks for light and air.
- Coordinate compound and plinth levels.
3D views help families understand scale
A 3D model shows walls, furniture and room connection better than a flat drawing for many clients. It becomes easier to discuss whether spaces feel too open, too tight or just right.
- Review furniture sizes.
- Check room-to-room movement.
- Use the model for discussion before working drawings.
For residential design, a 3D plan is most useful when it helps practical decisions. The goal is not only to make the plan look attractive, but to make the future house easier to understand.
