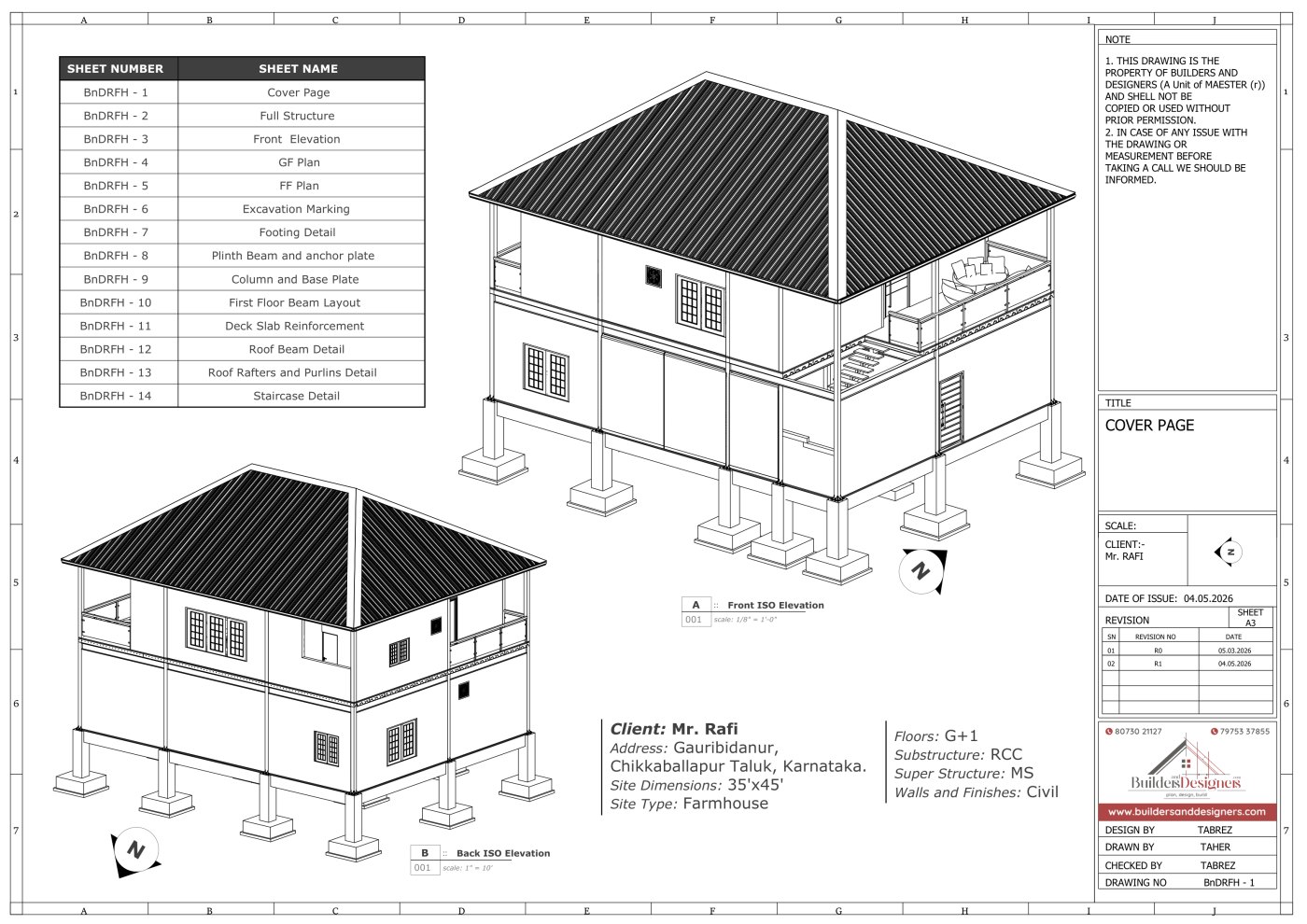

A cover page presentation drawing for Mr. Rafi’s farmhouse project at Gauribidanur, Chikkaballapur, showing front and back isometric elevation views of the proposed G+1 farmhouse. The sheet includes the project index, farmhouse site details, structural sy

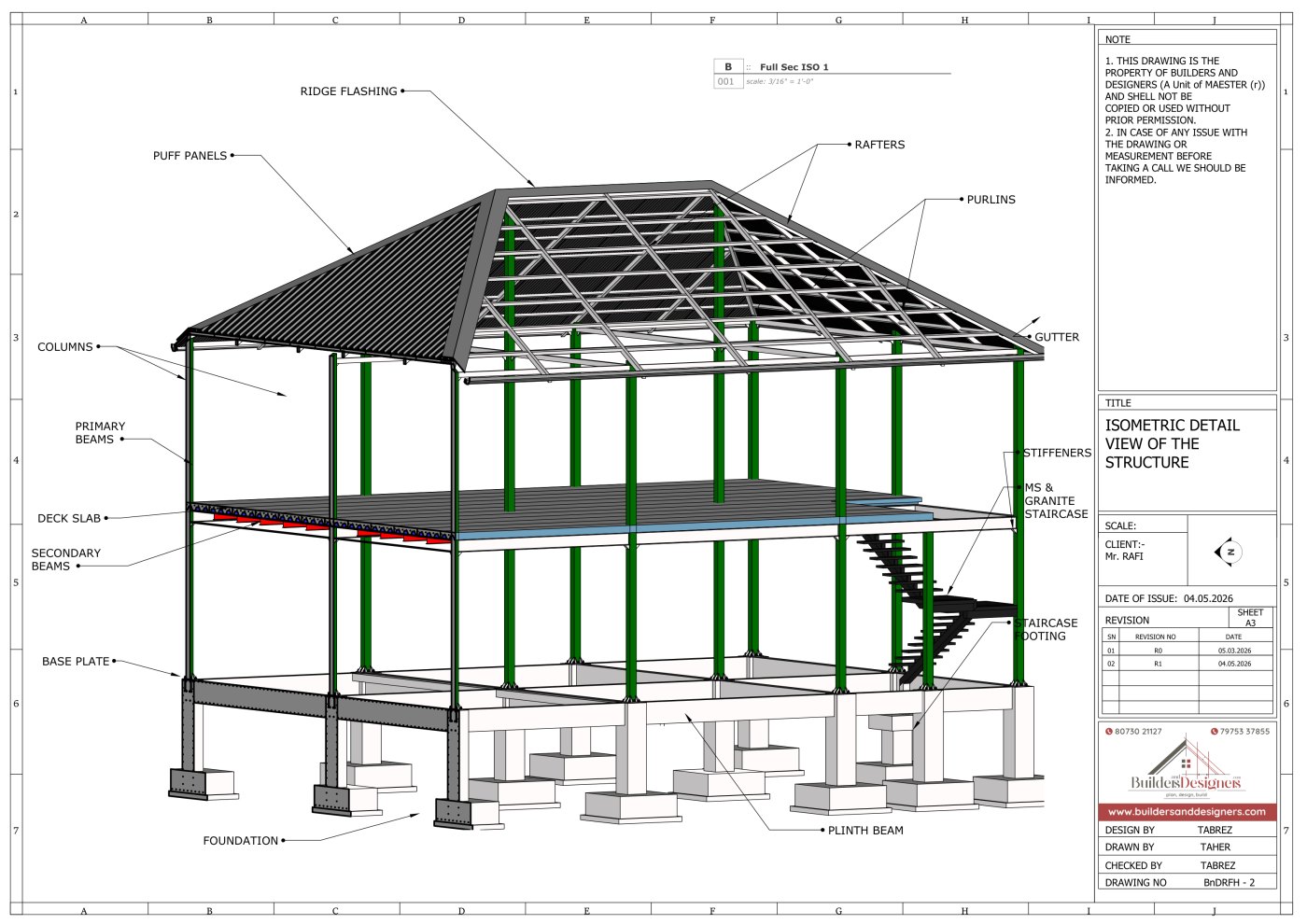

An isometric structural detail view for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the complete structural framework of the G+1 farmhouse. The drawing highlights the foundation, plinth beam, base plates, columns, primary beams, secondary beam

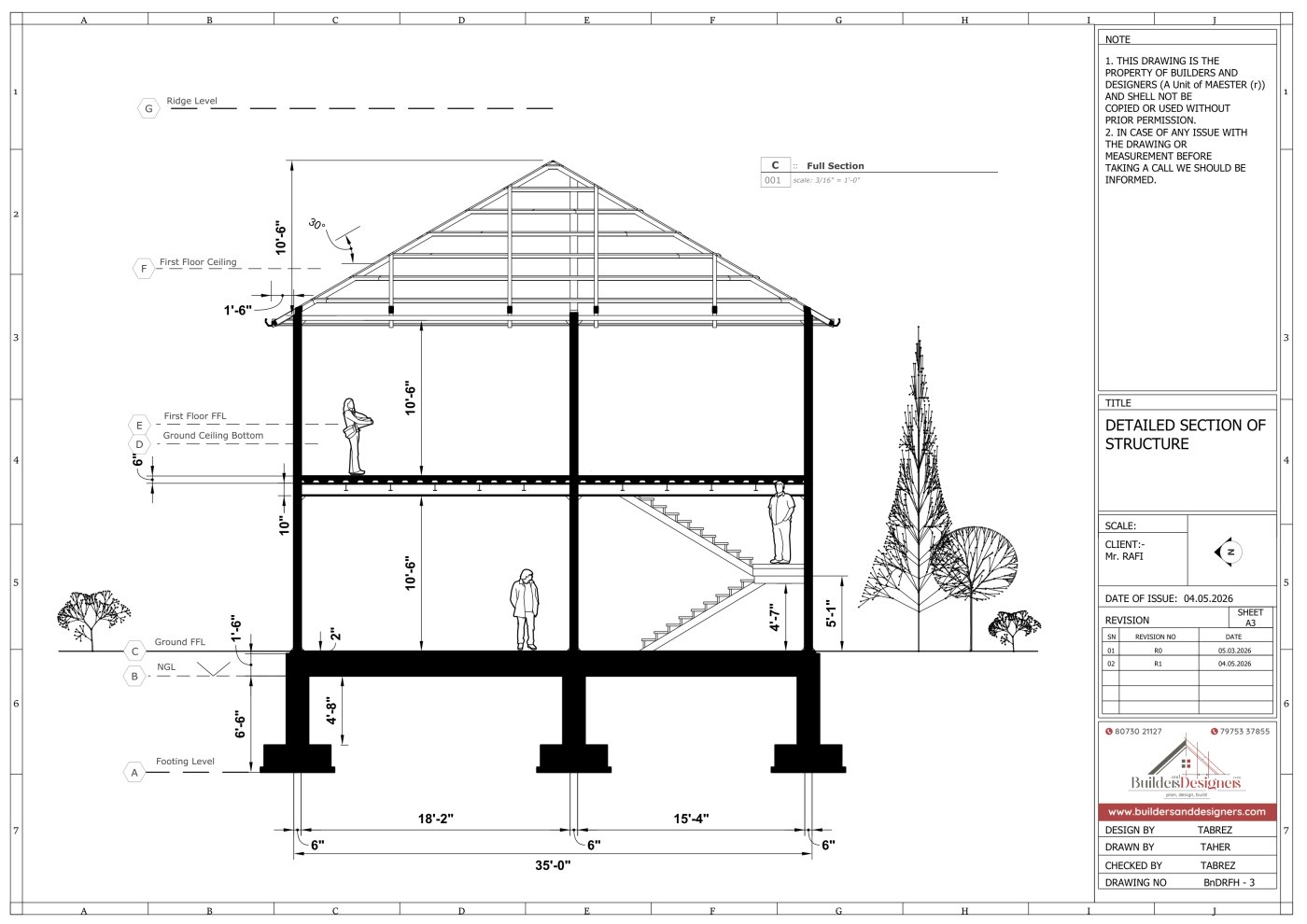

A detailed structural section drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the vertical arrangement of the G+1 farmhouse from footing level to ridge level. The drawing highlights the foundation, ground floor, first floor, deck slab,

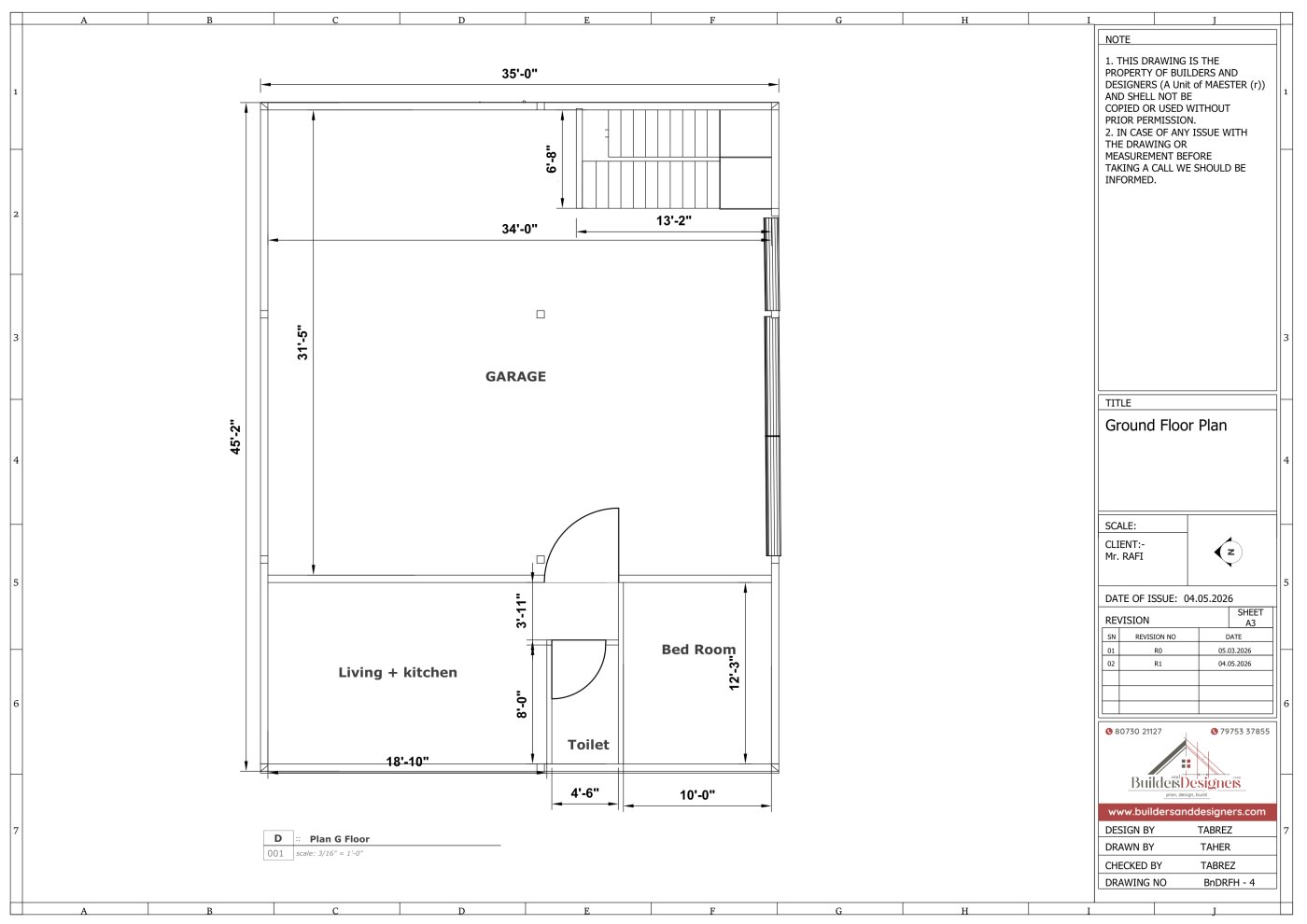

A ground floor architectural plan for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the internal layout of the farmhouse with a large garage area, living plus kitchen space, bedroom, toilet, staircase, doors, wall lines, and overall room dimensi

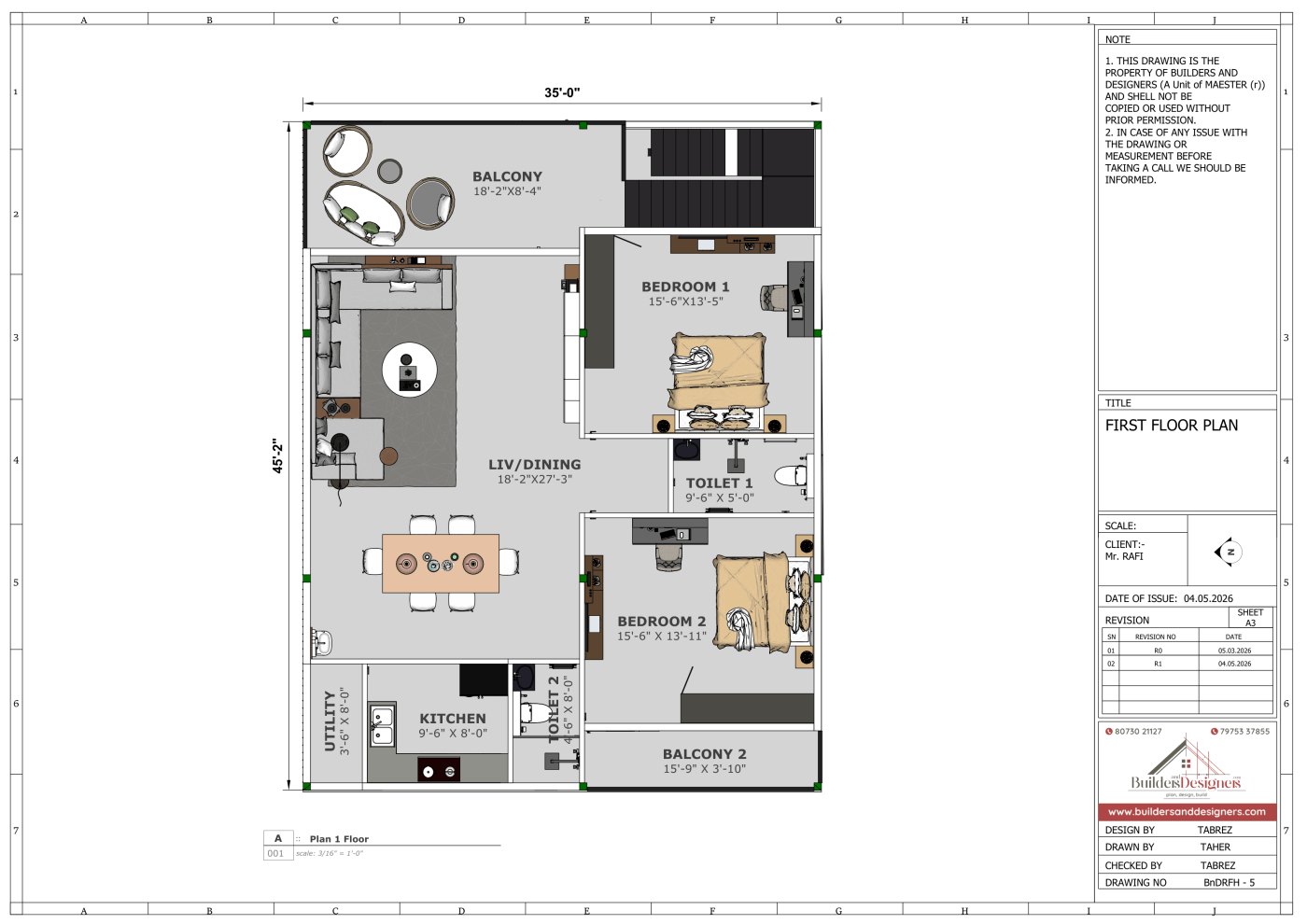

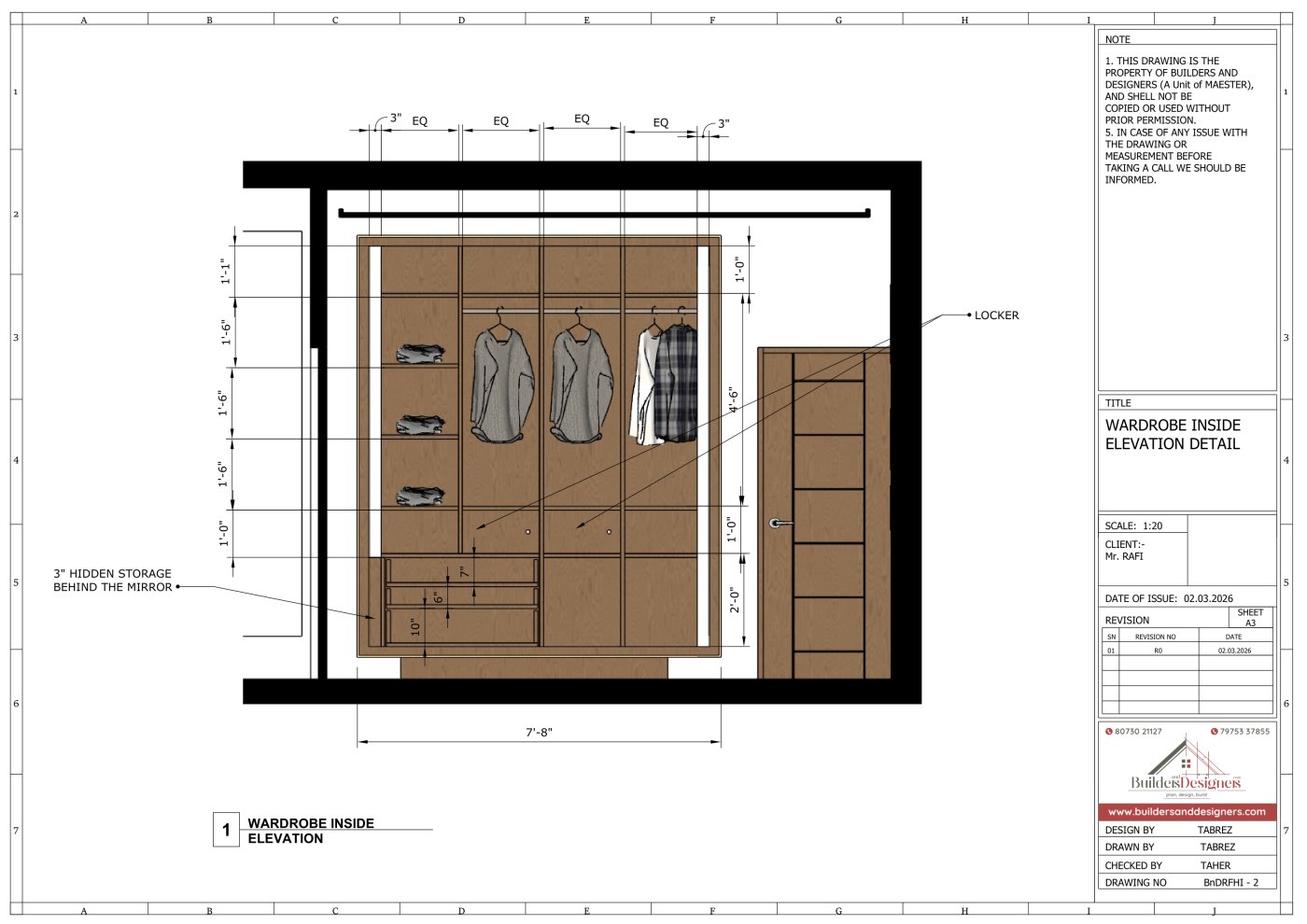

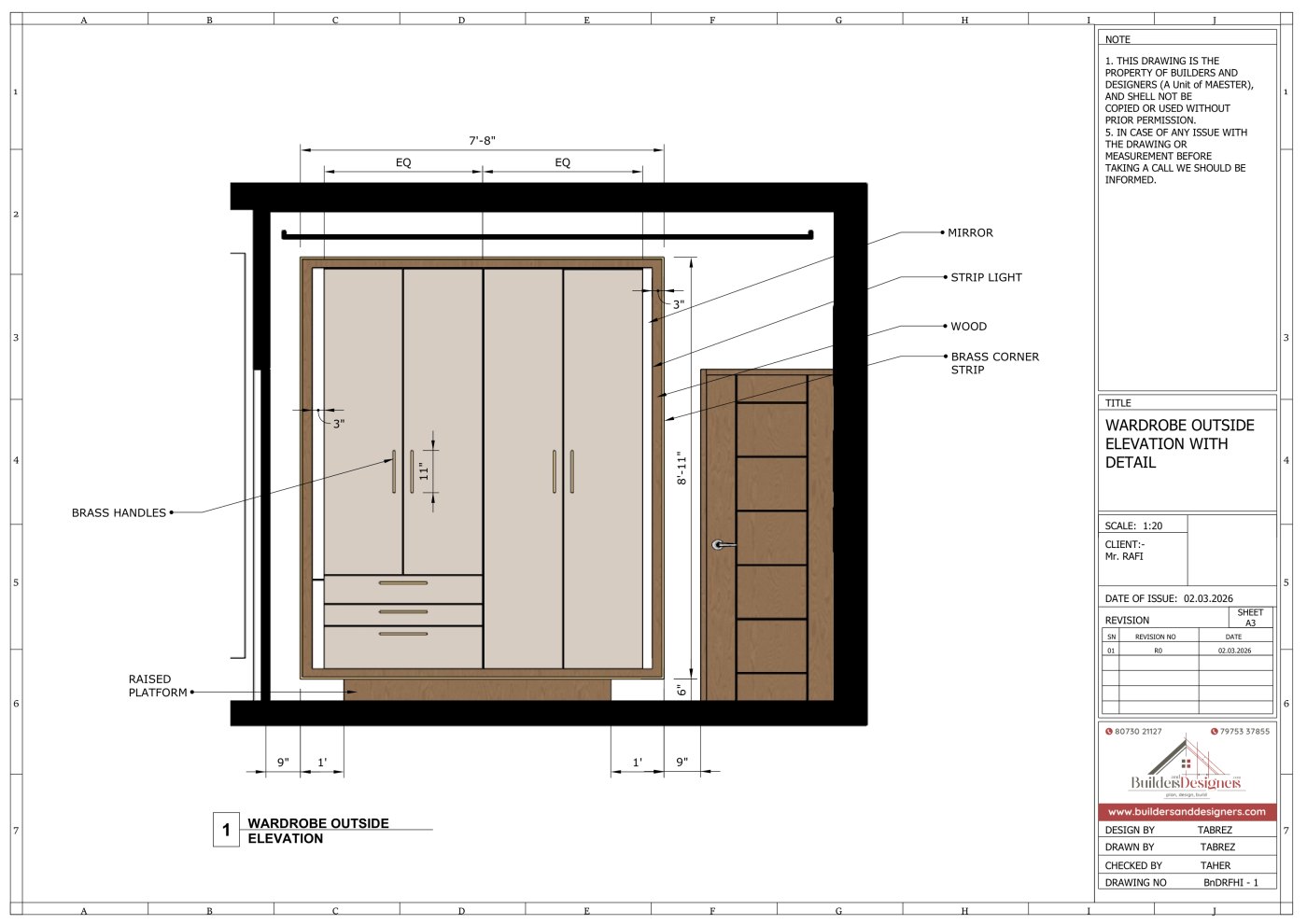

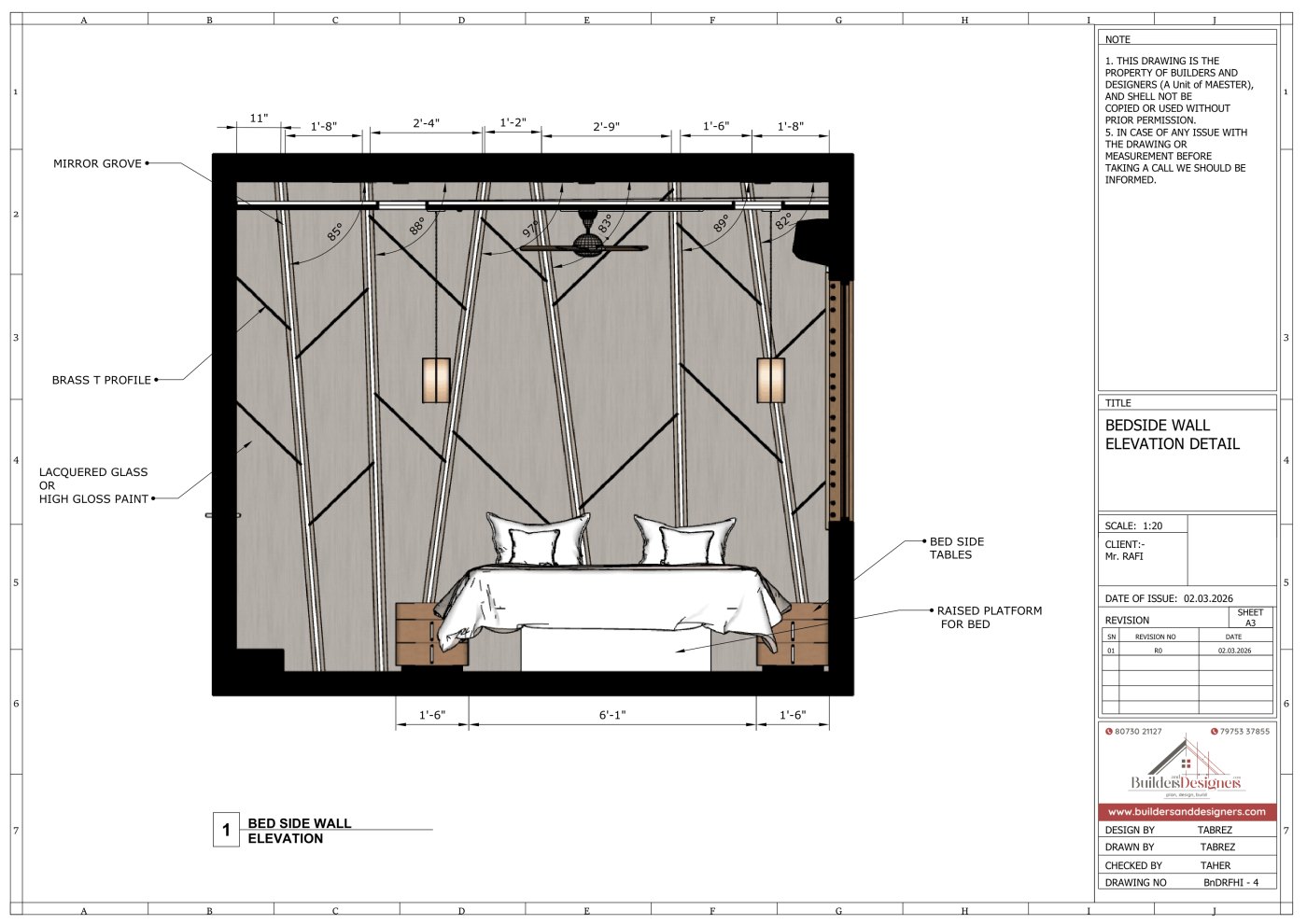

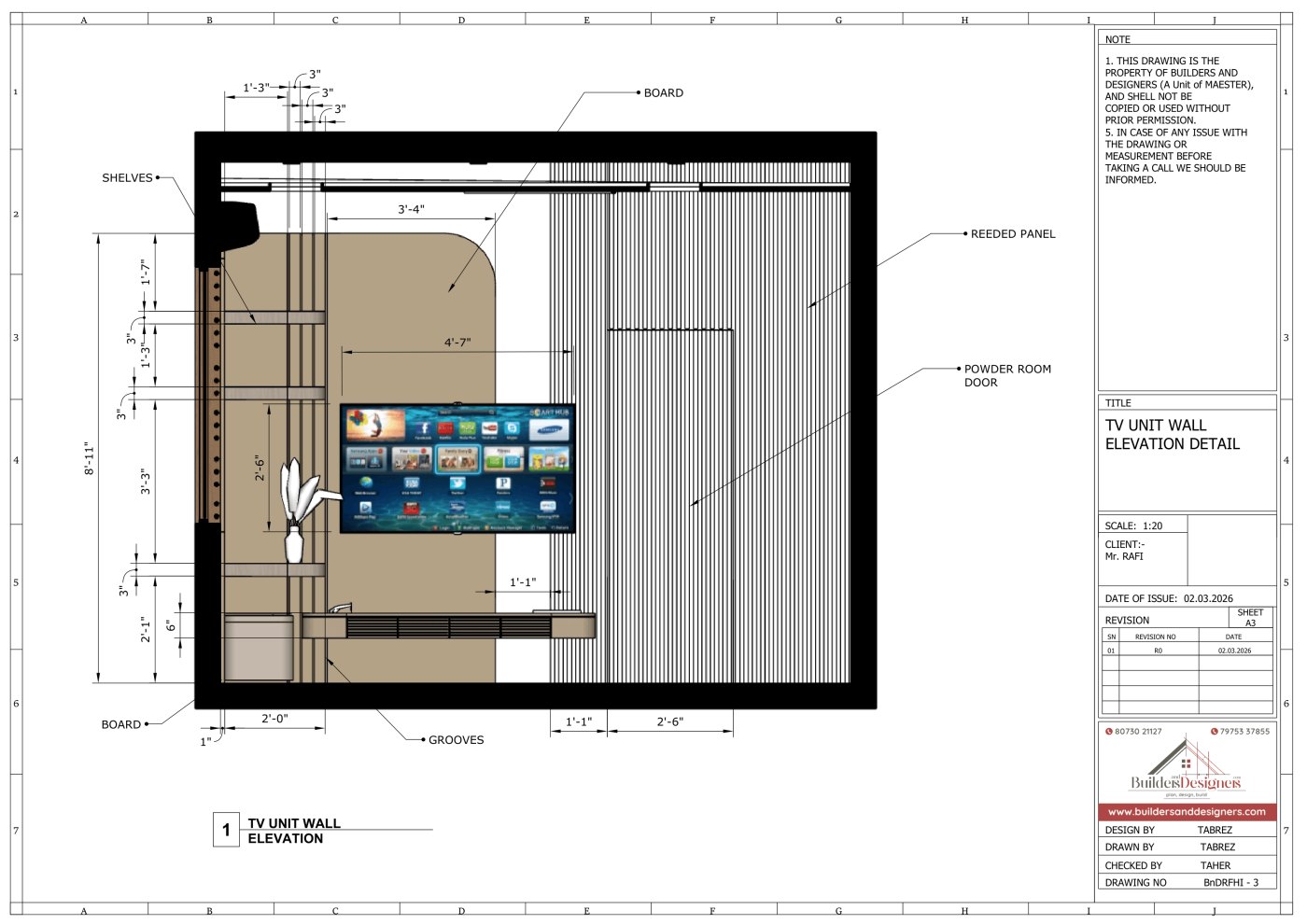

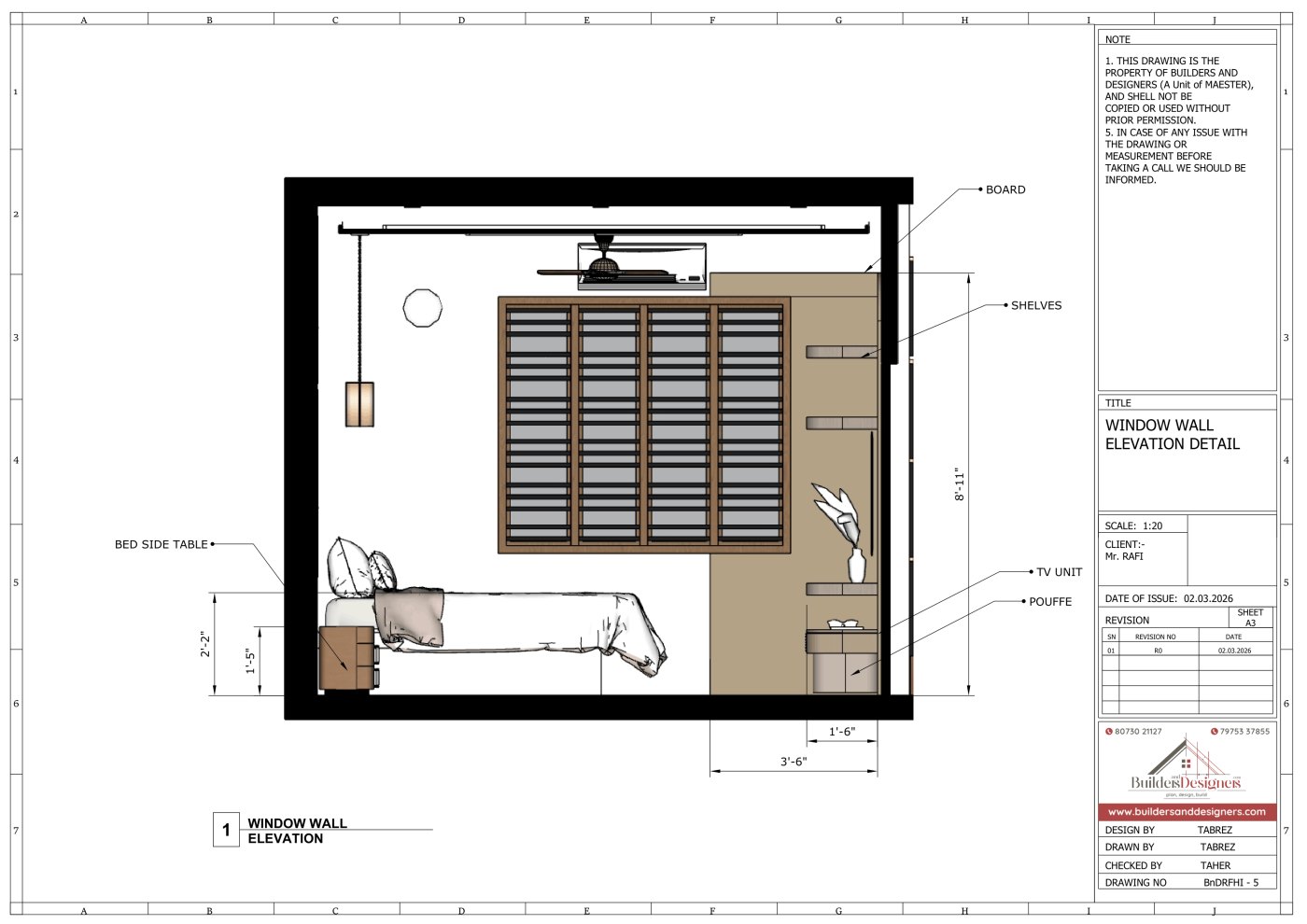

A detailed first floor architectural plan for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the arrangement of the living and dining area, kitchen, utility, two bedrooms, two toilets, balcony spaces, staircase access, furniture layout, doors, wa

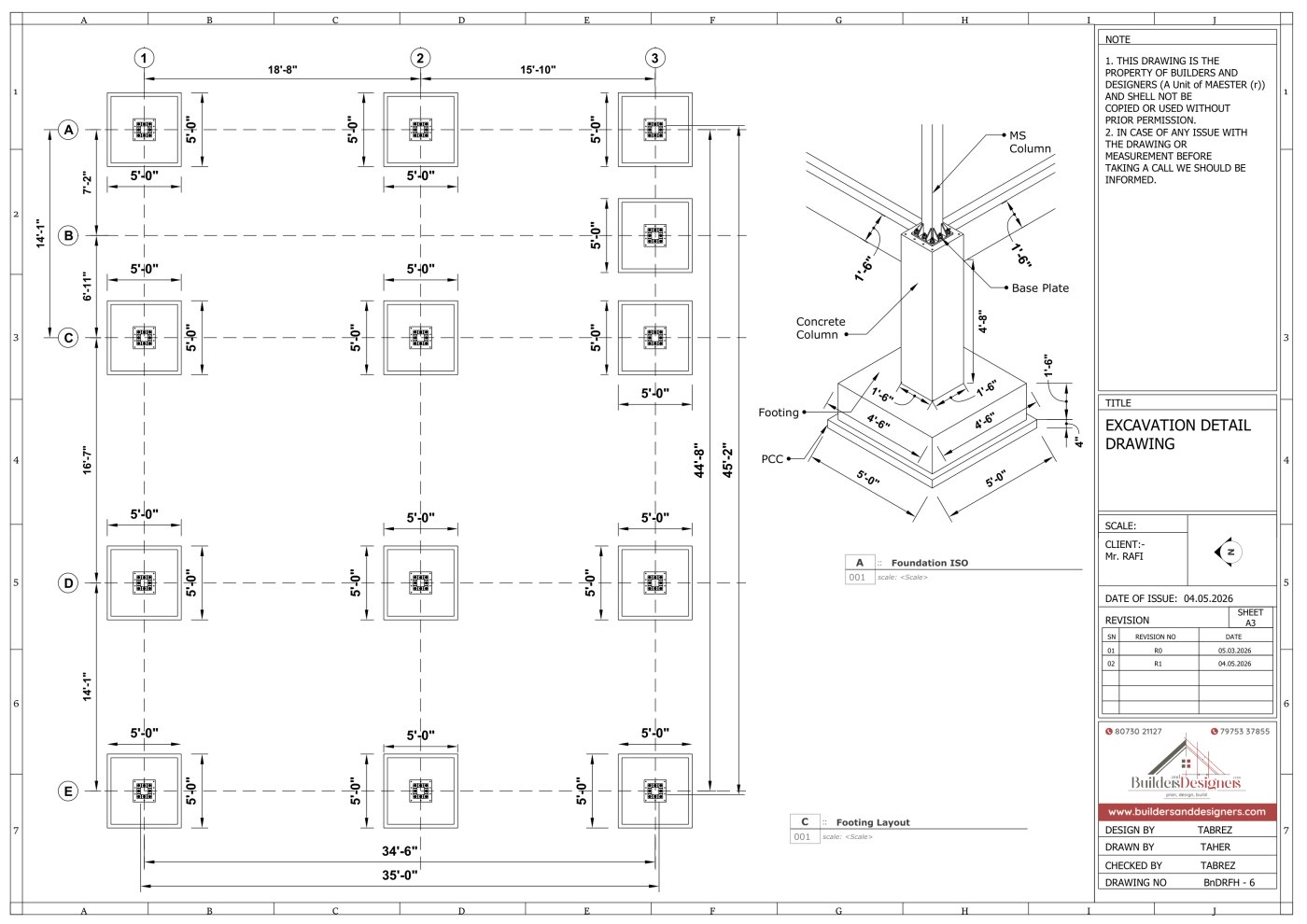

A structural excavation and footing layout drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the foundation grid, footing positions, excavation sizes, column centerlines, spacing dimensions, and footing arrangement across the building fo

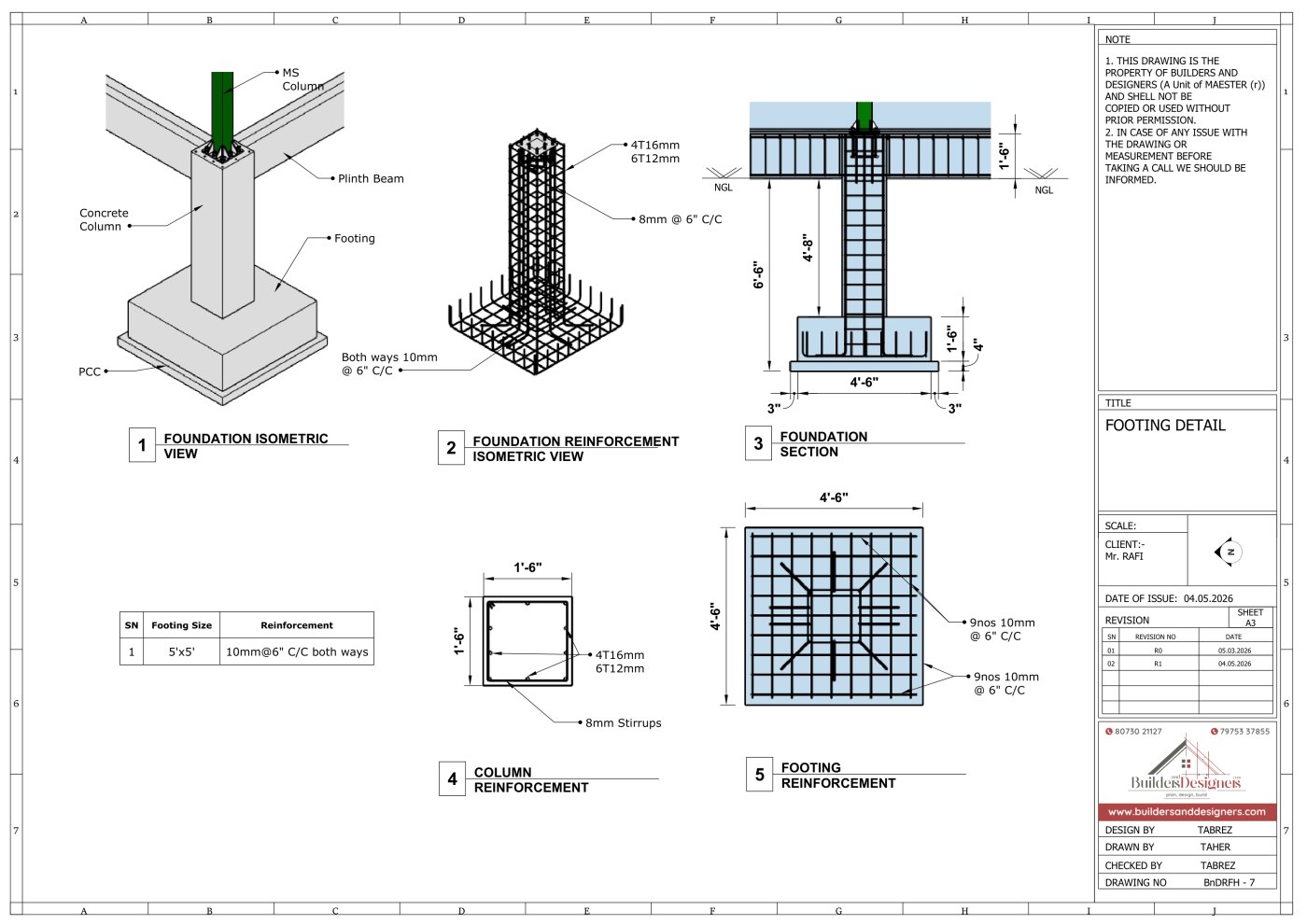

A detailed footing construction drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the foundation isometric view, footing reinforcement isometric view, foundation section, column reinforcement, and footing reinforcement layout. The drawin

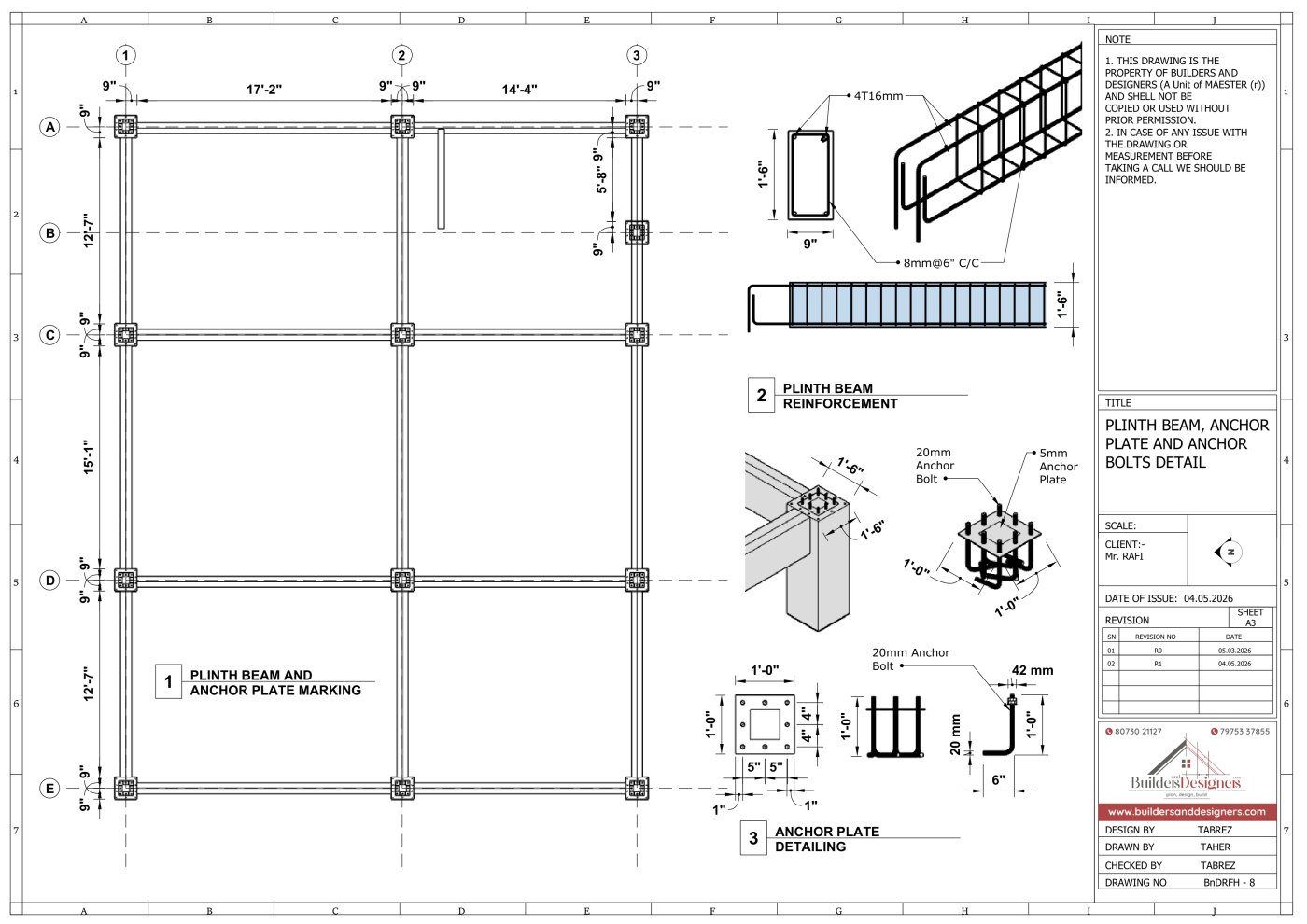

A structural plinth beam and anchor plate detail drawing for Mr. Rafi’s farmhouse project in Chikkaballapur. The drawing shows the plinth beam and anchor plate marking layout across the footing grid, along with plinth beam reinforcement details, anchor pl

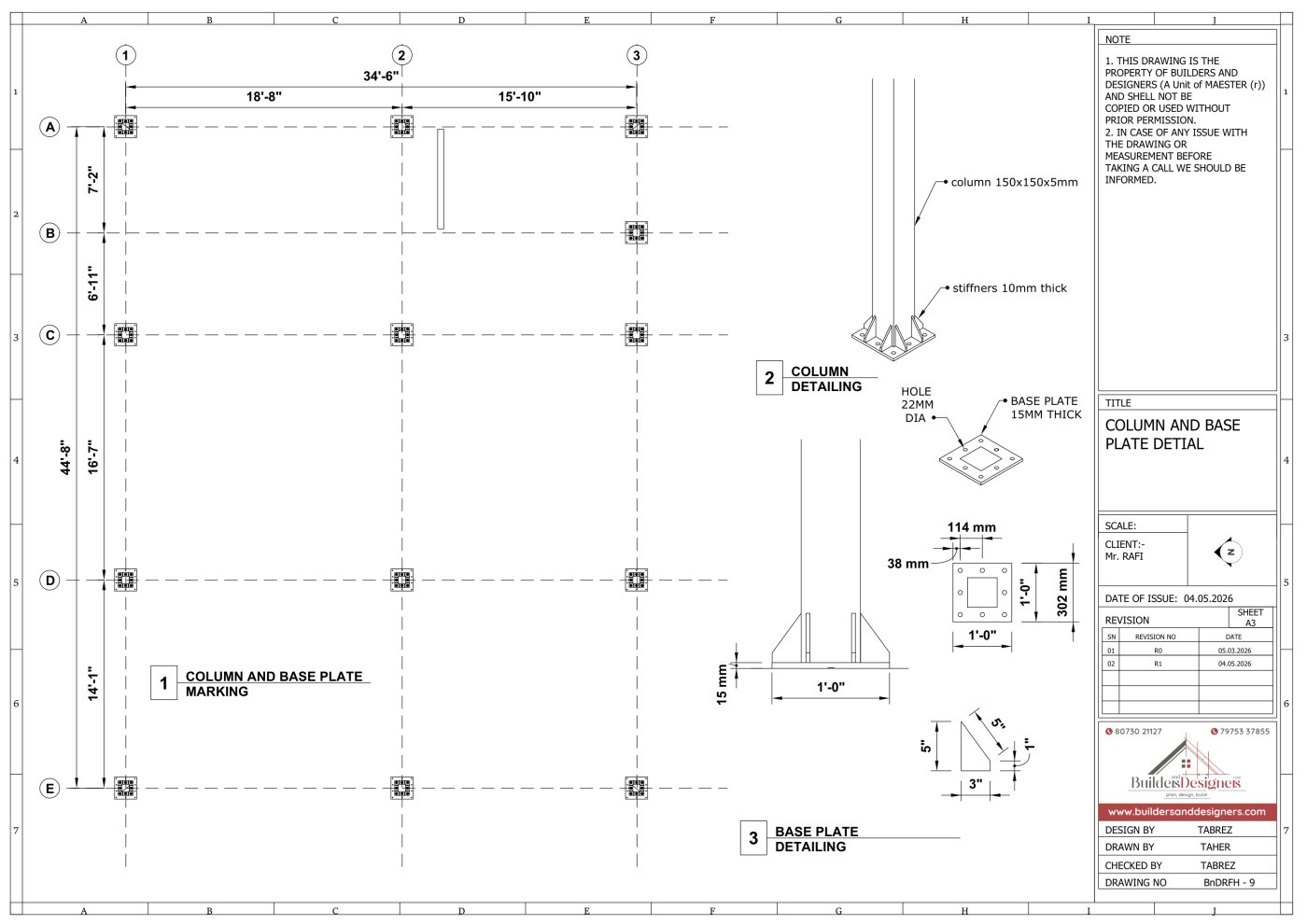

A structural column and base plate detail drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the column and base plate marking layout across the structural grid. The drawing includes MS column detailing, base plate arrangement, stiffener

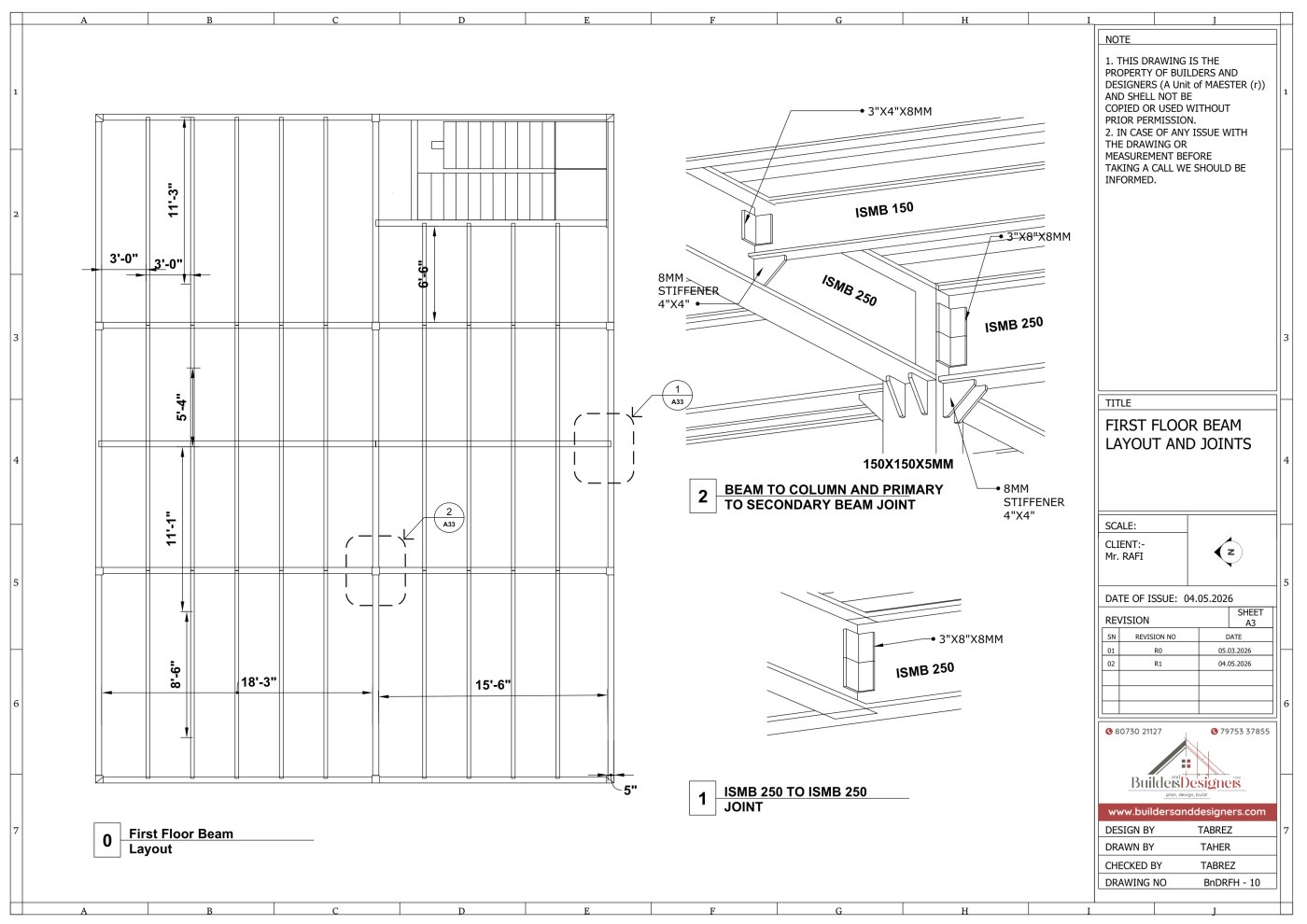

A structural first floor beam layout drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the arrangement of primary and secondary steel beams across the first floor level. The drawing includes beam spacing, structural grid alignment, ISMB

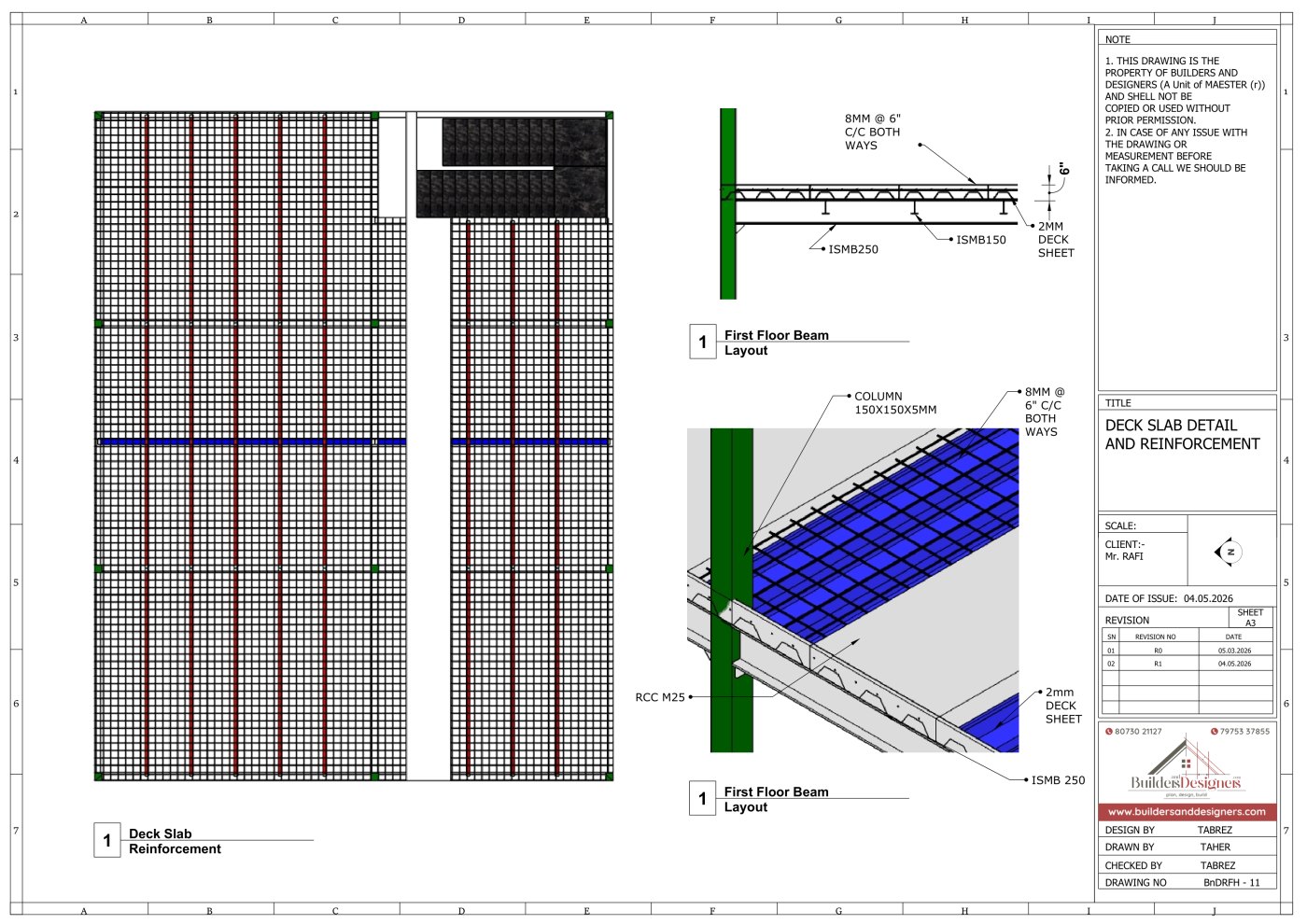

A structural deck slab detail and reinforcement drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the deck slab reinforcement layout over the first floor beam system. The drawing highlights reinforcement mesh arrangement, ISMB 250 and IS

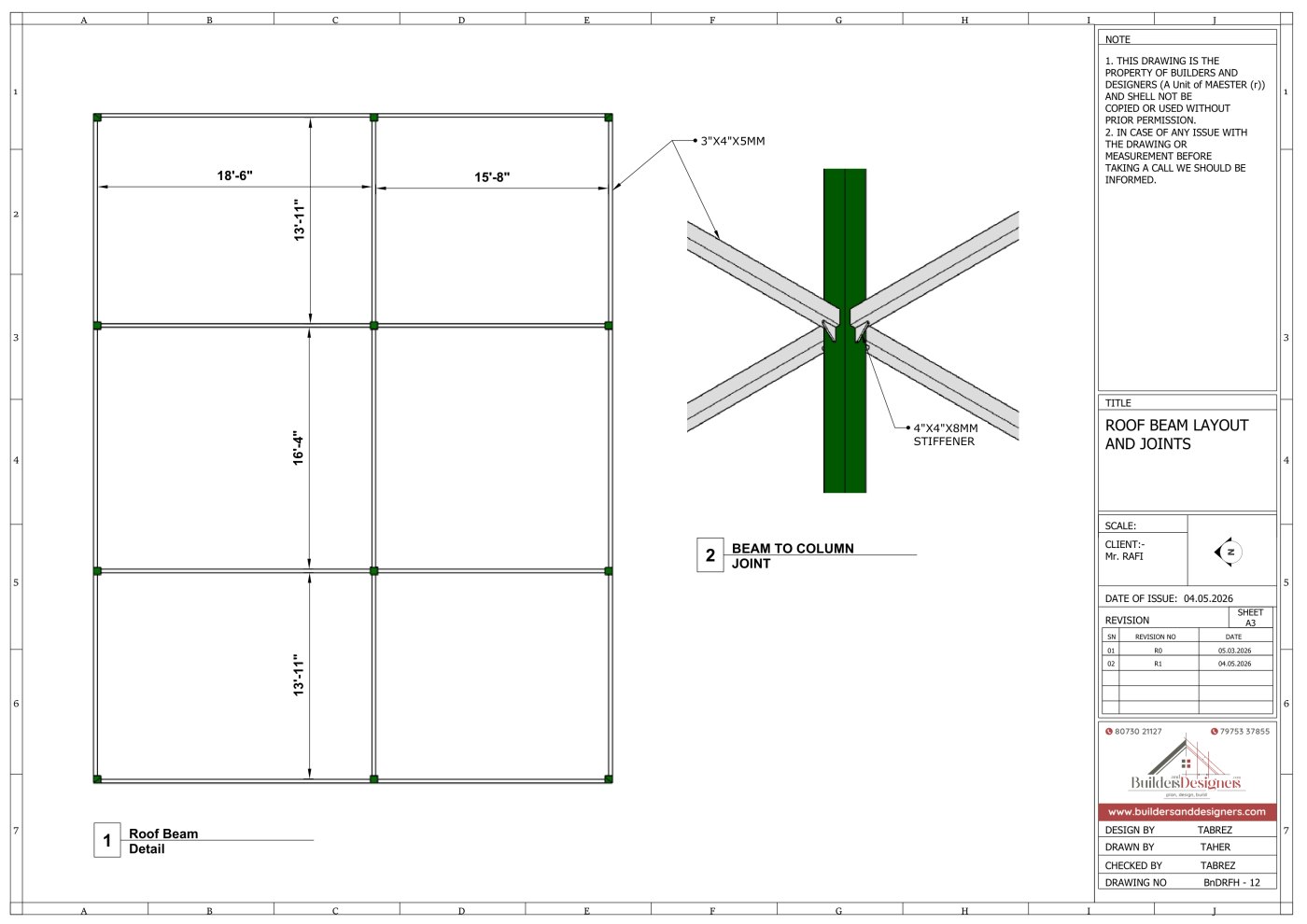

A structural roof beam layout drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the roof beam grid arrangement, beam spans, column connection points, and roof framing alignment. The drawing also includes a beam-to-column joint detail wit

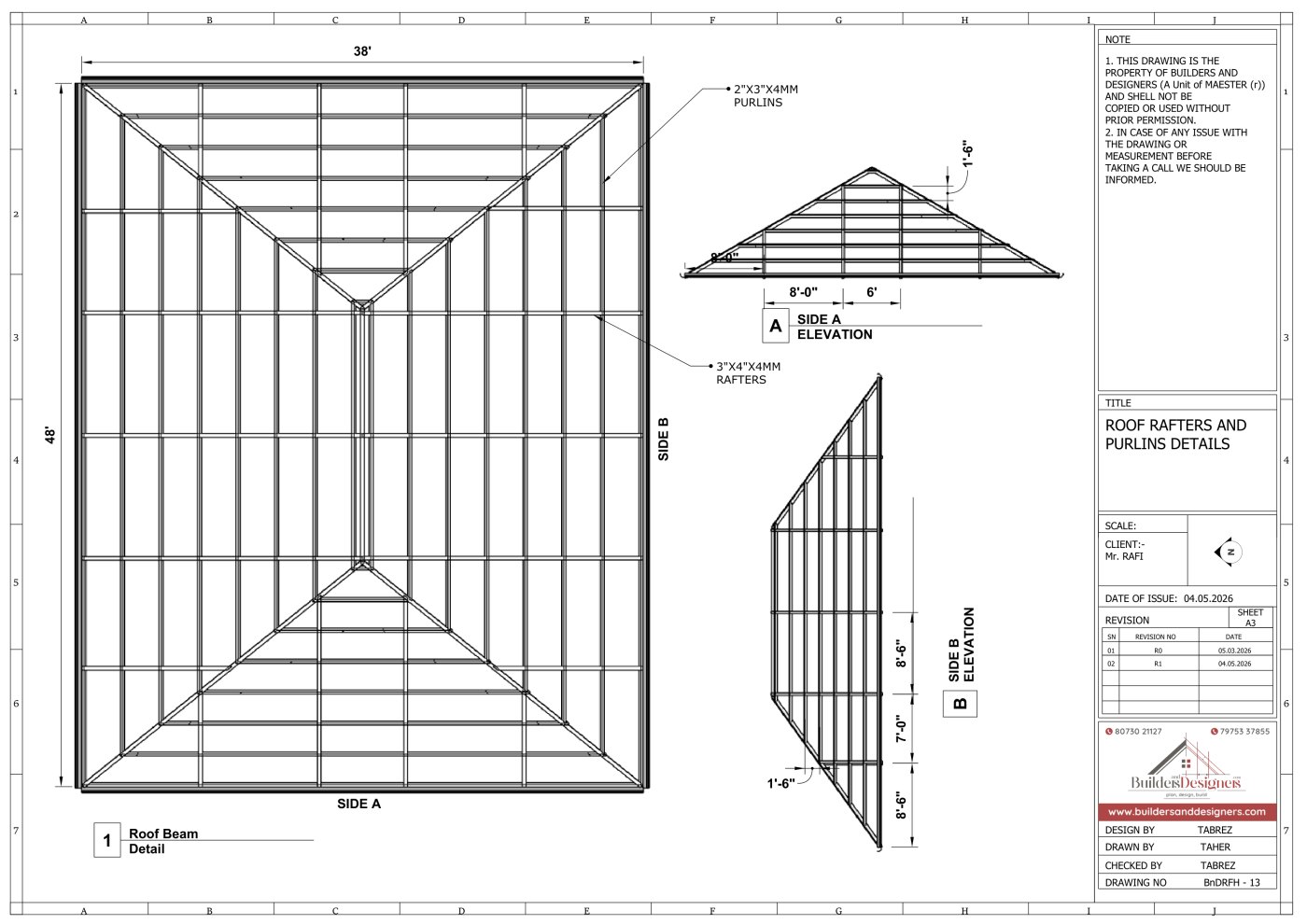

A structural roof rafter and purlin detail drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the complete roof framing layout with hip roof geometry, side elevations, rafter placement, and purlin spacing. The drawing highlights 3" x 4" x

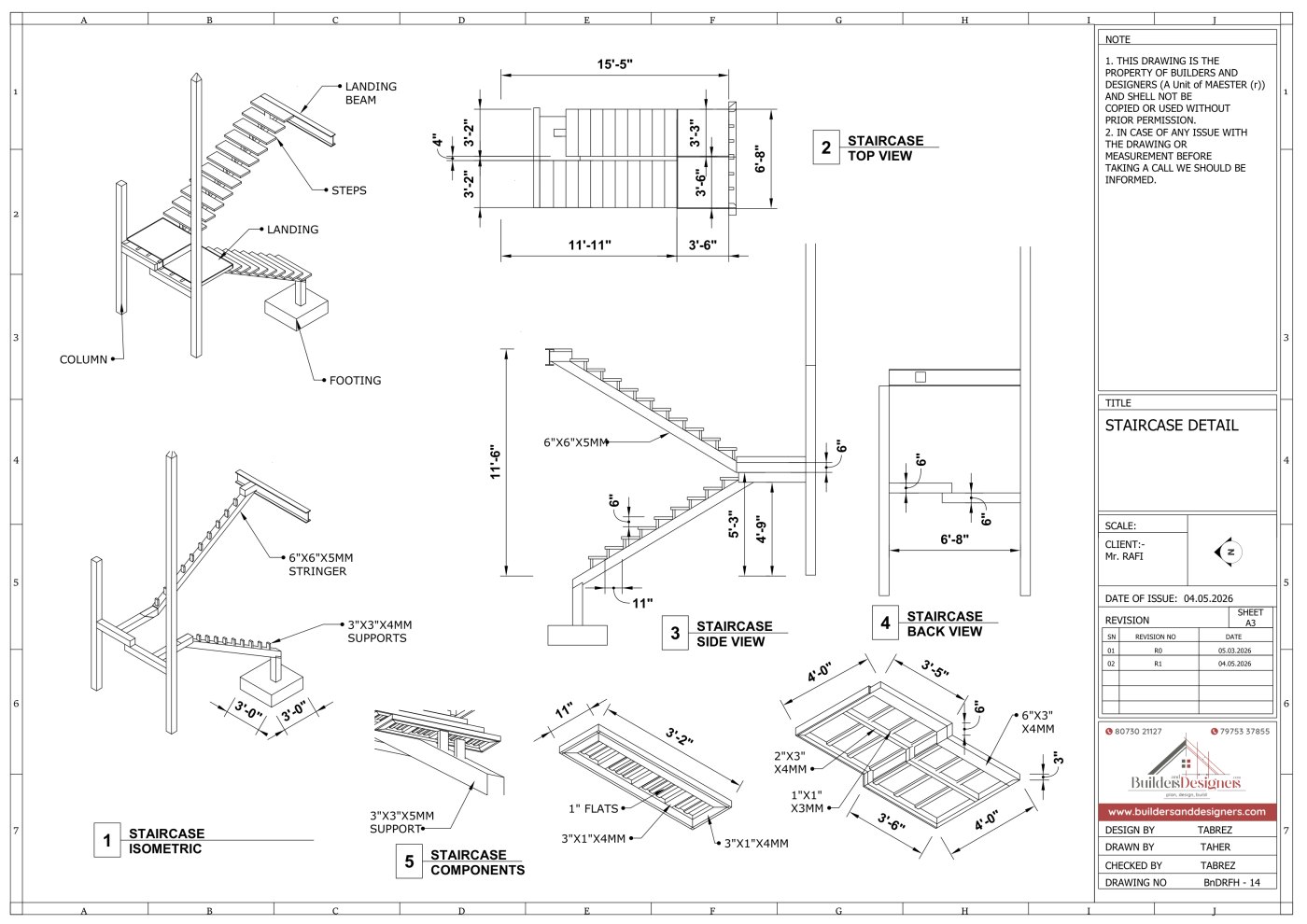

A detailed staircase construction drawing for Mr. Rafi’s farmhouse project in Chikkaballapur, showing the staircase isometric view, top view, side view, back view, landing, steps, landing beam, footing, columns, stringer, supports, and individual staircas
