Project Overview

This structural engineering project showcases detailed foundation, plinth beam, steel frame, and connection designs for a modern steel-framed building. The package includes footing details, base plate configurations, column connections, and structural layouts ensuring safe load transfer and long-term durability. Designed with M25 concrete and Fe550 reinforcement steel, the project complies with Indian structural design standards and construction best practices.

Gallery

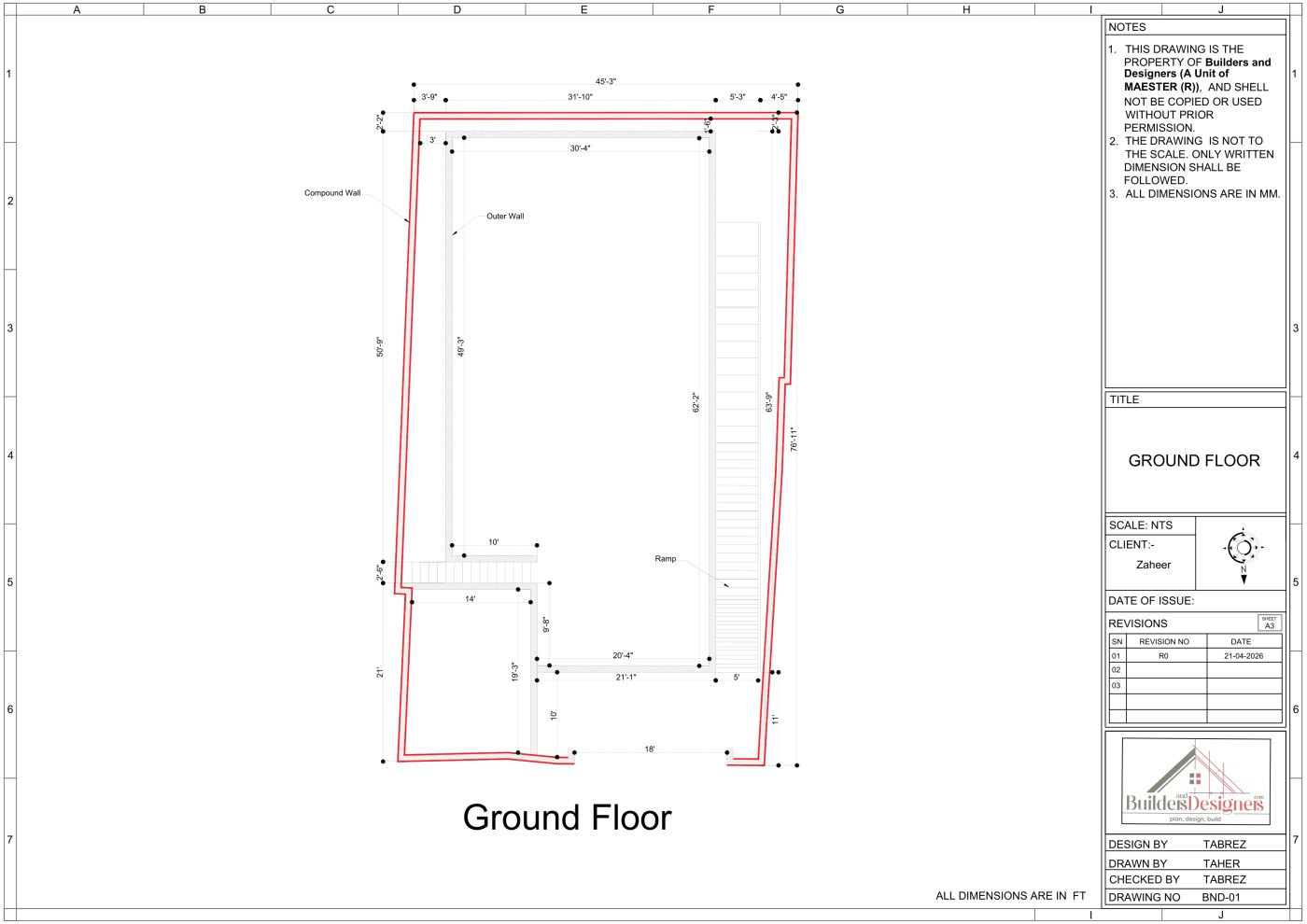

A ground floor architectural layout drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District. The drawing shows the site boundary, compound wall, outer wall, ramp access, internal floor outline, setback dimensions, and overall

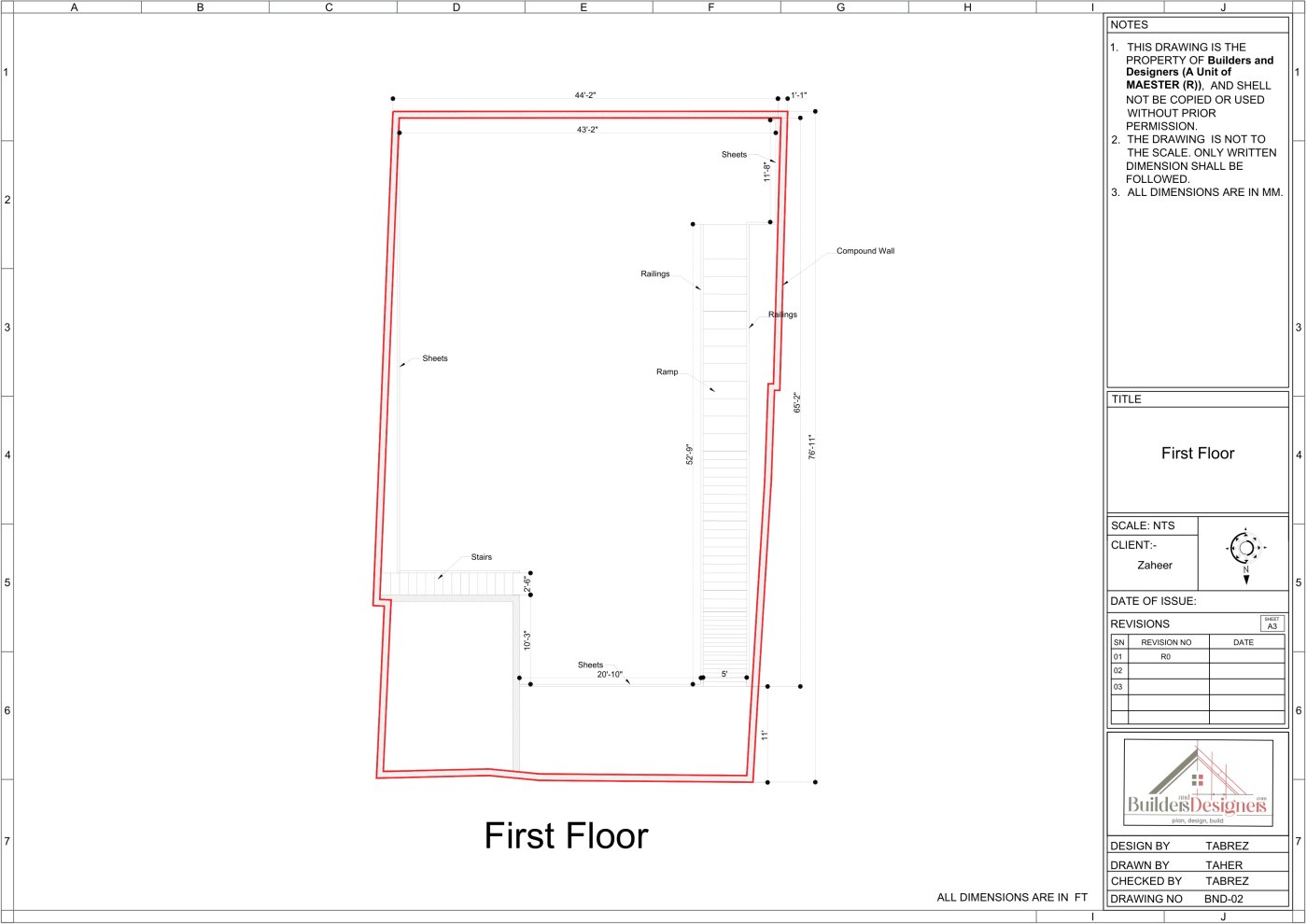

A first floor architectural layout drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District. The drawing shows the first floor boundary layout, compound wall, ramp access, railing locations, stair connection, sheet-covered are

A structural frame and connection detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District. The drawing shows frame sections, steel roof member alignment, column supports, footing/base connection, purlin spacing, ridge

A structural frame and connection detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District. The drawing shows Frame 01 and Frame 02 with steel roof members, vertical column supports, base footing connections, slab/beam

A structural foundation layout and detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District. The drawing shows the foundation grid, footing positions, pedestal details, base plate arrangement, anchor bolt locations, rei

A structural foundation detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District, showing detailed footing and pedestal sections for steel column supports. The drawing includes footing reinforcement, pedestal reinforcem

A structural foundation detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District, showing footing and pedestal details for steel column support locations. The drawing includes foundation sections, footing reinforcement

A structural foundation detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District, showing detailed footing and pedestal arrangements for steel column support locations. The drawing includes foundation sections, reinforc

This structural drawing presents the plinth beam layout for Mr. Zaheer’s River Showroom & Service Center in Tumakuru District. It shows the beam grid arrangement connecting the column positions across the site, along with the compound wall and wall alignm

A structural base plate detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District, showing Plan C-1 and Plan C-2 with anchor plate, base plate, anchor bolts, and stiffener plate arrangements. The drawing specifies 25 mm

A structural base plate detail drawing for Mr. Zaheer’s River Showroom & Service Center project in Tumakuru District, showing Plan C-3 and Plan C-4 with anchor plate, base plate, anchor bolt, and stiffener plate arrangements. The drawing specifies 25 mm a
