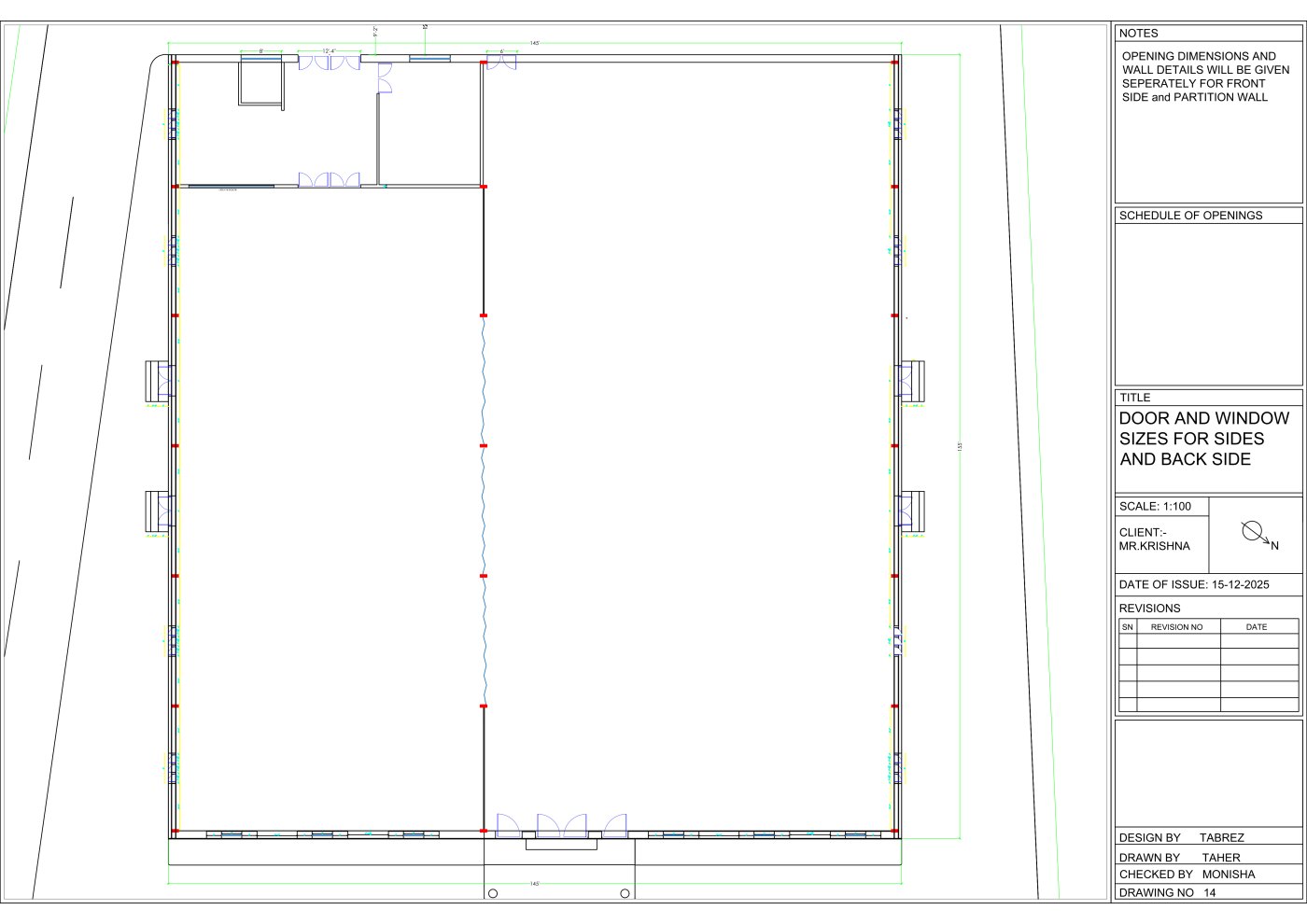

A technical architectural layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the door and window opening positions along the side and back walls of the hall. The drawing highlights the overall hall footprint, entry points,
A detailed architectural layout plan for the proposed suite rooms behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows the ground floor and first floor room arrangement, including multiple bedroom suites with attached toilets, wardrobe
A structural beam and column layout drawing for the proposed suite rooms behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows the ground floor beam/plinth layout and first floor structural grid, including column positions, beam lines,
A structural footing layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the foundation grid, footing locations, footing types, column centerlines, spacing dimensions, and structural reference notes. The drawing identifies d
A structural footing reinforcement schedule drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the reinforcement details for different footing types including F-1, F-2, F-3, F-4, and F-5. The drawing includes footing depth, footin
A structural column layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the positioning of RCC columns across the building grid. The drawing marks column numbers such as C-1 to C-11, column sizes, grid spacing, centerline re
A structural column reinforcement schedule drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing reinforcement details for different column marks including C-1, C-2, C-3, C-4, C-5, C-6, C-7, C-8, C-9, C-10, C-11, and C-12. The drawin
A detailed toilet plan layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the arrangement of multiple toilet cubicles, wash basin counters, urinal areas, passages, entry doors, ventilation openings, and overall dimensional
A complete site and functional layout plan for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the overall arrangement of the convention hall, stage, seating area, dining setup, kitchen/service zones, toilet blocks, suite room block, garde
A detailed kitchen floor layout plan for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the arrangement of the cooking area, washing area, counter top, fridge location, gas cylinder placement, entry door, windows, ventilators, and interna
A structural kitchen column and beam layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool. The drawing shows the kitchen structural grid with column positions, beam lines, grid references, and overall dimensions of the kitchen block.
A structural drawing for the kitchen block of Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the kitchen column layout along with column reinforcement details. The drawing includes column positions marked C-1 to C-6, column sizes, grid di
A structural kitchen footing layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the footing positions, footing marks, column grid references, spacing dimensions, and foundation setting-out details for the kitchen block. The
A structural kitchen footing reinforcement schedule drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing reinforcement details for kitchen footing types F-1 and F-2. The drawing includes footing depth, footing size, bottom reinforce
A kitchen SSM layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the solid stone masonry layout around the kitchen block. The drawing highlights the kitchen wall footprint, entrance opening, overall dimensions, and SSM spec
A structural kitchen plinth beam layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the plinth beam arrangement, beam marks, beam sizes, grid references, column locations, and overall kitchen block dimensions. The drawing h
A structural kitchen plinth beam reinforcement drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing reinforcement details for PB-1, PB-2, PB-3, PB-4, and PB-5 plinth beams. The drawing highlights 8" x 18" beam sections, main reinfor
A structural kitchen slab beam layout drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing the slab beam arrangement for the kitchen block. The drawing highlights beam marks GS-1, GS-2, GS-3, GS-4, and GS-5 with 8" x 18" beam sizing
A structural kitchen beam reinforcement drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing reinforcement details for slab beams GS-1, GS-2, GS-3, GS-4, and GS-5. The drawing highlights 8" x 18" beam sections, top and bottom reinfo
A structural kitchen slab detail drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool, showing slab reinforcement layout, bar spacing, slab panel divisions, support beam positions, and reinforcement direction details. The drawing highlights
A structural SSM layout drawing for the proposed suite room block behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows the solid stone masonry layout along the room block, including wall footing lines, internal room divisions, grid ref
A structural plinth beam layout drawing for the proposed suite room block behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows the plinth beam arrangement across the room layout, including beam marks, beam sizes, column/grid references
A structural plinth beam reinforcement detail drawing for the proposed suite room block behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows reinforcement details for multiple plinth beams marked PB-1 to PB-19, including beam sizes, ma
A structural ground slab beam layout drawing for the proposed suite room block behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows the ground slab beam arrangement, slab panel divisions, beam marks, column/grid references, 5-inch slab
A structural ground slab beam reinforcement drawing for the proposed suite room block behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows reinforcement details for multiple ground slab beams marked GS-1 to GS-21, including beam sizes,
A structural ground slab reinforcement drawing for the proposed suite room block behind Mr. Krishna’s Dhone Convention Hall in Kurnool. The drawing shows the slab reinforcement arrangement across multiple room panels, including main bars, distribution bar
A structural staircase reinforcement detail drawing for Mr. Krishna’s Dhone Convention Hall project in Kurnool. The drawing shows the staircase plan and sectional reinforcement arrangement, including tread and riser details, landing beam, mid-landing beam
